Thurso Railway Station

Thurso Railway Station

£60.00 GBP
£60.00 GBP
Sale Sold out
Gauge

Thurso Station (there is a similar station at Wick) is the furthest North Station in Britain. Opened in 1874 on the Sutherland and Caithness Railway from Helmsdale. It was absorbed by the Highland Railway 10 years later as a route from Perth via Inverness. The line is still operated by Scotrail and is worth a trip today to savour the glorious scenery on route.

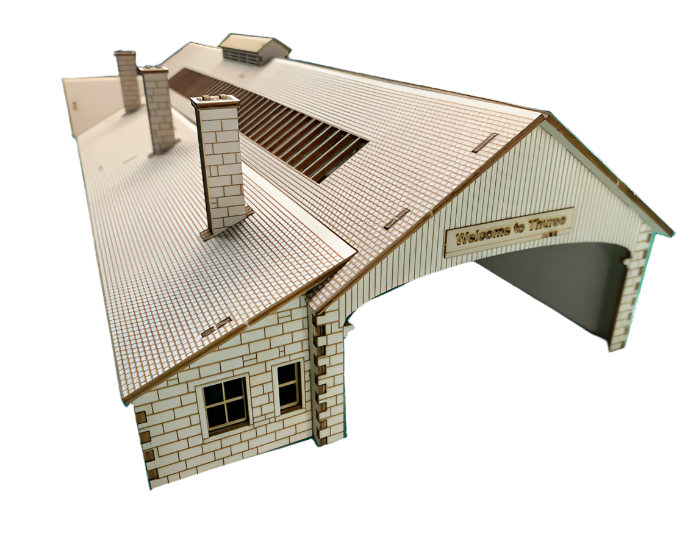

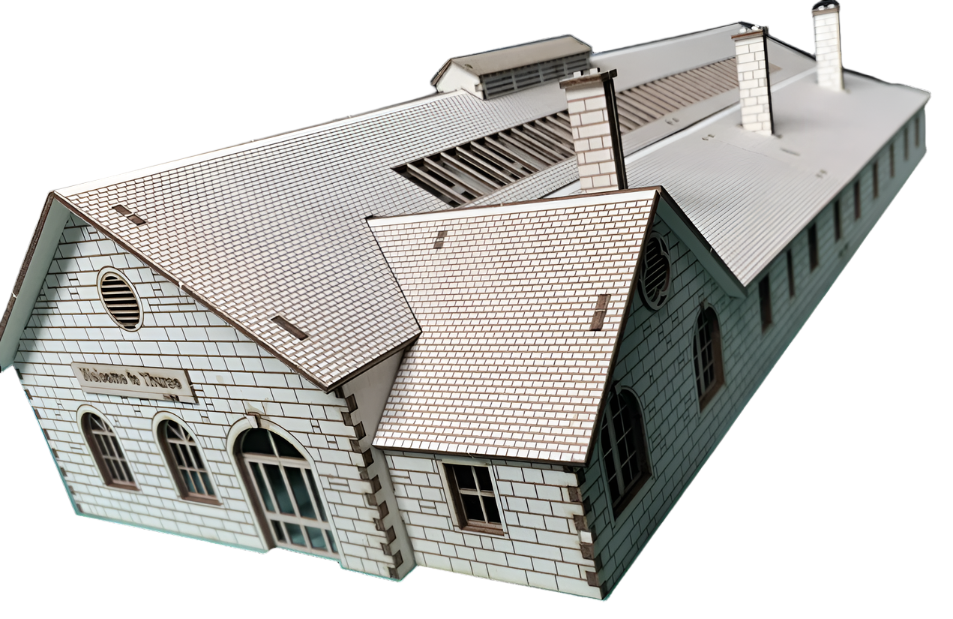

This bespoke 8 x A4 3mm plywood sheet (1 x 0.8m ply sheets) model and one A3 sheet,  windows in 0.8mm birch ply has been designed in 1/76 scale to represent this classic Highland Railway Station.

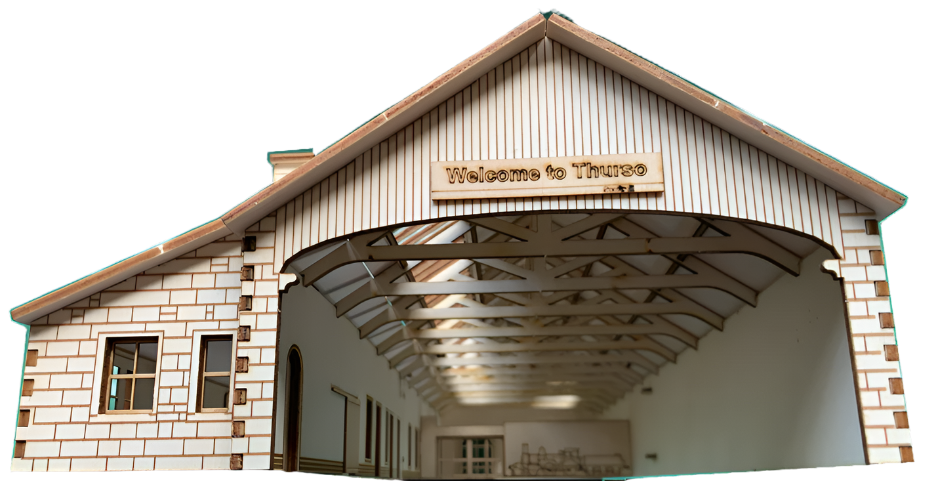

The kit offers the option to construct in either the “current” style (with an internal wall forming an anti-room before the platform) or “pre-80s” style with the original full length of track under shelter of the roof.

The kit also offers an option to take into account the station being built on a slope. One side of the station kit can have a 2ft extension at the lower edge whilst the other side is at platform level.

The base size is 222mm x 577mm at its biggest width, to help with the layout of your designs.

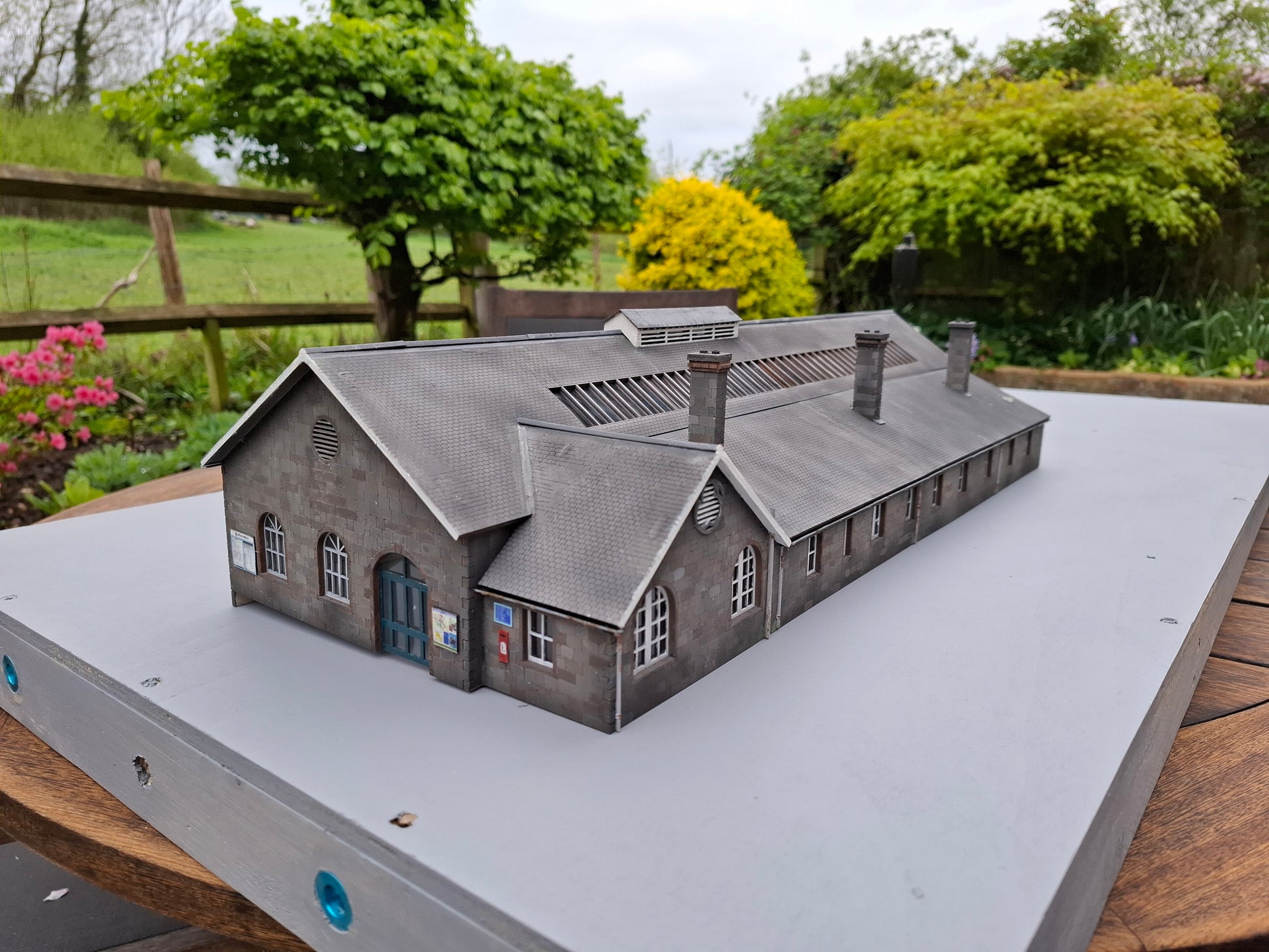

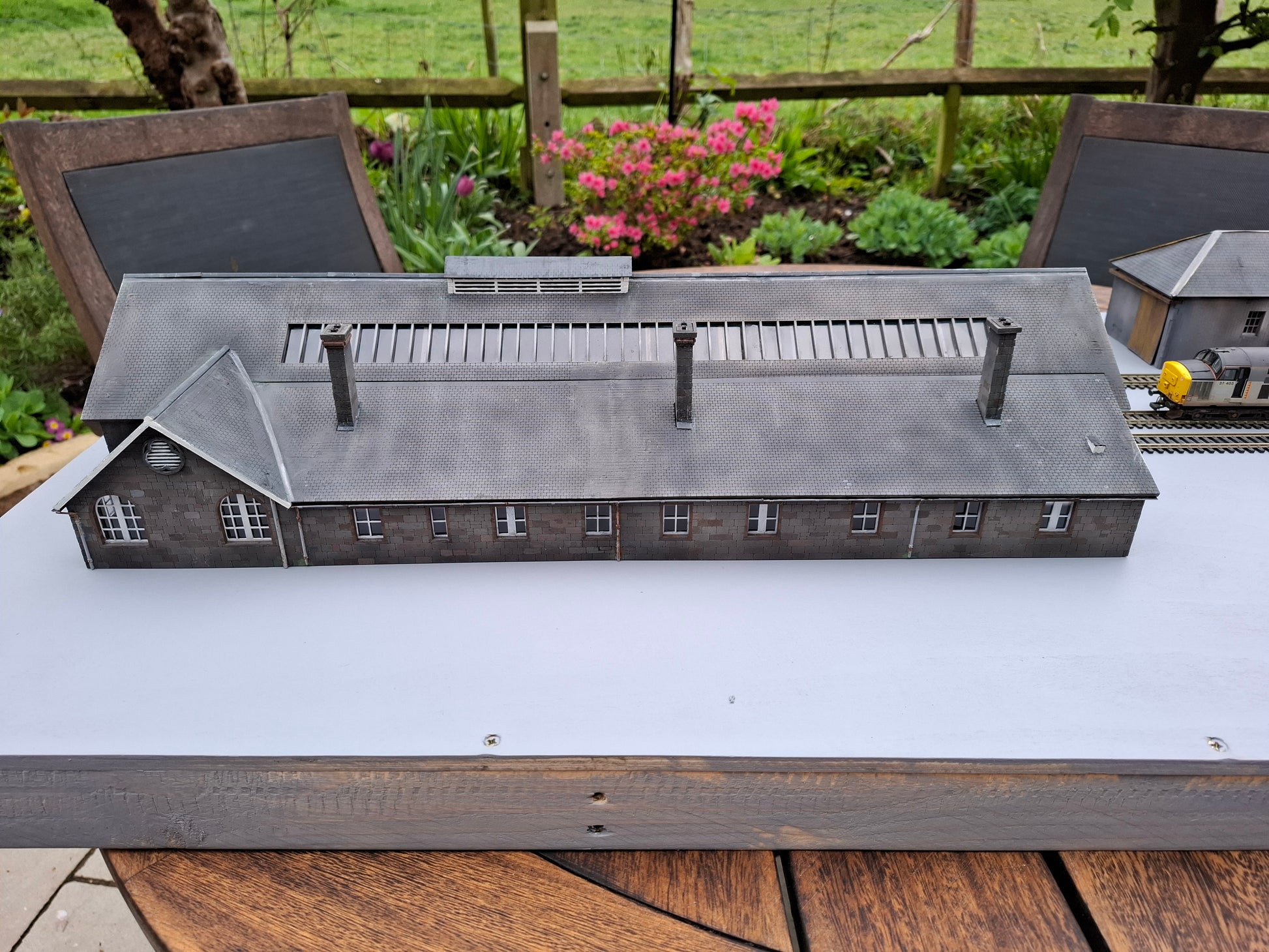

Images of an assembled model kindly provided by Martin who has done a fantastic job!

The building requires glue. Choose a glue that allows at least a minute before setting to allow adjustments to be made during the build. Always test the build before using glue.

For finishing, we recommend first priming the surface, then painting with any acrylic or model paint of your choice. The material is etched, so any engraved detail such as brickwork or roof tiles will be visible after painting.

Important Information About Railway Scaling

All dimension drawings are supplied in OO gauge.

All kits are designed in OO gauge using 3 mm plywood. When scaling the digital files to other gauges, there are a few considerations to take into account. The instructions supplied with your kit will be the OO gauge version, as the build order remains the same across the different scales.

TT:120 Gauge:
All TT:120 gauge kits are scaled to 66% of the size of the original OO gauge model. The mathematically correct conversion from OO to TT:120 is approximately 63.33%, meaning that our TT:120 models are intentionally slightly oversized.

We use the 66% scaling factor because the material thickness required for a true 63.33% reduction is not readily available. By using 66% scaling and 2 mm plywood, we can offer our full range of kits in TT:120 while maintaining the correct fit and assembly of the original designs, without the manual modifications required for our O gauge kits.
This means our TT:120 models are approximately 4.2% larger than mathematically exact 1:120 scale, but this allows us to retain the design detail, strength and ease of assembly of our kits.
If you have any other questions, tips or enquiries, please don't hesitate to contact us via our email address or contact form.

N Gauge:
Scaling to N gauge works well and requires no additional modifications due to the material thickness. Some parts will be very fine, so take care when removing them from the frame. If some window pieces are particularly fine, they can be reinforced by soaking them in glue before assembly.

O Gauge Orders:
When scaling to O gauge, some manual modifications may be required during assembly. This is due to the increased material thickness required when scaling from the 3 mm plywood used for OO gauge. At true O gauge scale, the equivalent material thickness would be approximately 5.25 mm. As this thickness of plywood is not readily available, we use the closest available thickness, 4 mm plywood.

Each design is modified to account for the reduced material thickness, but some manual adjustment may still be required during assembly. We recommend dry-fitting the parts before gluing so that any joints that require light sanding can be identified and adjusted for a flush finish.

This kit is designed by Iain Ross and sold by PopUp Designs with his permission.
