Duror/Appin Shelter

This Waiting Shed was found on the Ballachulish Extension of the Callander and Oban Railway at stations such as Appin, Duror, Benderloch and Kentallen. The line was opened in August 1903. The line was closed in 1966. Much of the line is now a lovely cycle path. The station building at Duror survives as a private house.

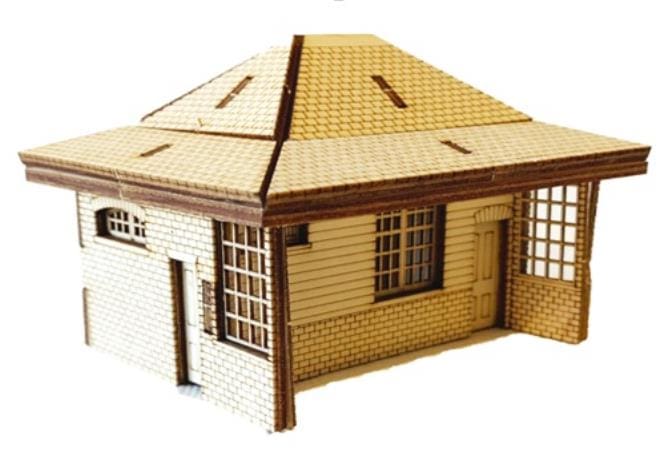

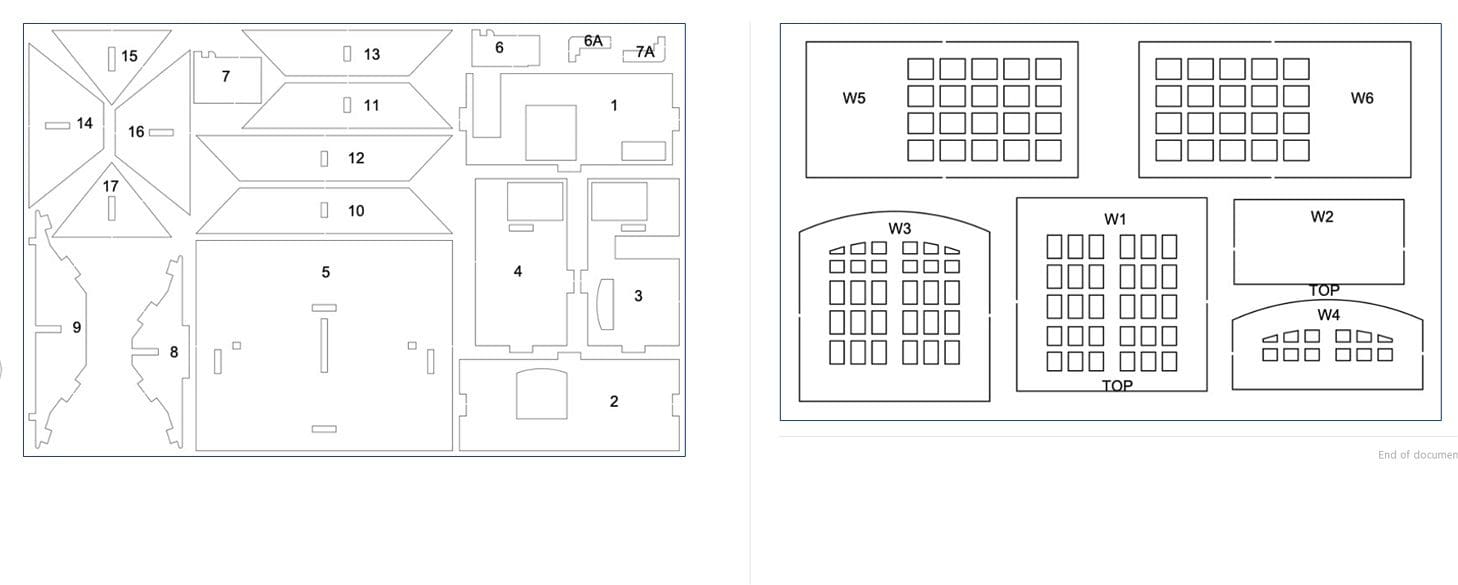

This bespoke 1 x A4 laser cut 3mm plywood sheet model ( 1 x A4 windows in 0.8mm ply) has been designed (in 1/76.2 scale) to capture this attractive little platform waiting shed.

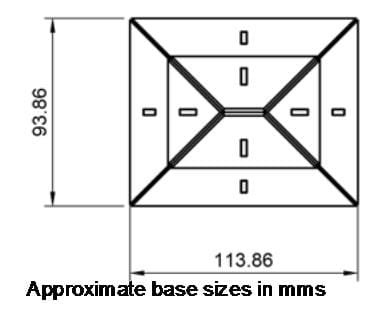

The base size of this model when assembled  is approx  114 x 94 mm (to help with layout designs).

The building requires glue. Choose a glue that allows at least a minute before setting to allow adjustments to be made during the build. Always test the build before using glue.

For finishing, we recommend first priming the surface, then painting with any acrylic or model paint of your choice. The material is etched, so any engraved detail such as brickwork or roof tiles will be visible after painting.

Important information about railway scaling:

All kits are designed in OO Gauge on 3mm plywood, so there are a few considerations to be made when scaling the digital files to other Gauges. The instructions provided will be the OO version as the build order is the same at different scales.

O Gauge Orders: When scaling to O gauge, there are manual modifications that may need to be made when assembling the kit. This is due to the thickness of the plywood when scaling the kit from the OO gauge material of 3mm to the O gauge 5.25mm material that would be needed. As this thickness of ply does not exist, we undersize the material to the closest thickness we have of 4mm plywood and recommend dry fitting the build first so that any joints that need to be sanded for a flush finish can be noted.

N Gauge Orders: Scaling to N gauge works well and has no extra modifications needed due to material thickness. Some parts will be very fine, so take care when removing them from the frame. If some window pieces are particularly fine, they can be reinforced by soaking them in glue before assembly.

TT Gauge Orders: Scaling to TT requires slightly more modifications of the designs before cutting, so please contact us if you’re interested in a kit, and we can provide you a quote at info@popupdesigns.co.uk.

Any other questions, tips or enquiries please don’t hesitate to contact us via our email address or contact form.

This kit is designed by Iain Ross and sold by PopUp Designs with his permission.
