Crieff Station

Crieff Station

£70.00 GBP
£70.00 GBP
Sale Sold out
Gauge
Size option

Crieff Station opened in 1893 at the junction of the Caledonian Railway line from Gleneagles to Crieff, the Crieff and Comrie line and the Perth to Crieff line. It was the second station replacing an earlier station (Crieff First) on the Crieff Junction Railway from Perth. The station comprised two “mirror image” buildings on the North and South platforms built in wood based on a Caledonian Railway design that was later used at Callander Station.

The station was closed in 1964 and demolished (being in poor repair). The site is now the Crieff community hospital.

This bespoke 7 x A4 laser cut 3mm plywood sheet for the main building only  (canopy in 1xA4 in 1.5mm ply; 4xA4 in 0.8m ply) model has been designed in 1/76 scale.  Thanks are given to the Caledonian Railway Association www.crassoc.org.uk for providing the drawings and photos on which this model was based.

This is an exceptional kit,  beautifully detailed and lots of amazing work to make.  We have a model of it on display in our main shop/workshop and it is a fantastic rail model.

The Station requires glue. Choose a glue that allows at least a minute before setting to allow adjustments to be made during the build. Always test the build before using glue. this model is large and does not include the canopy set included in the main photo.

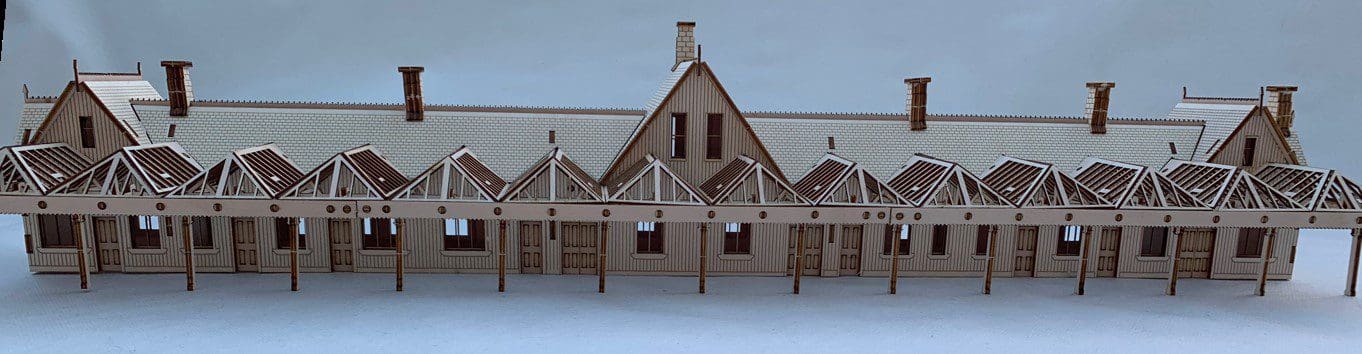

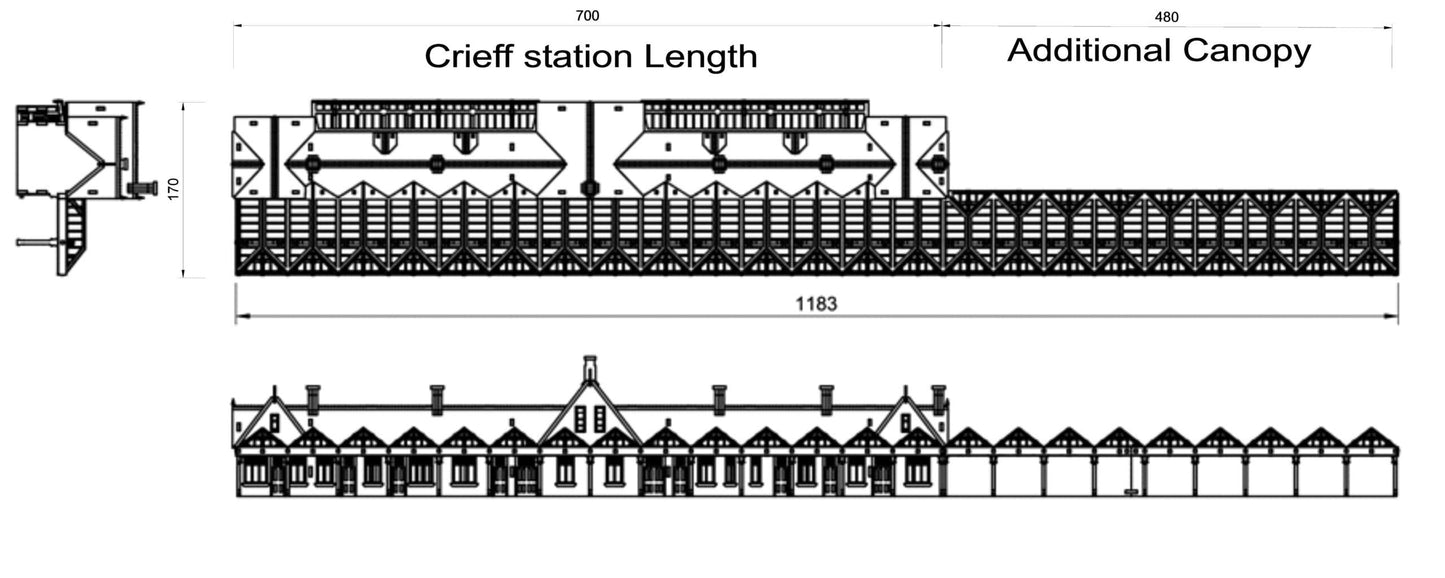

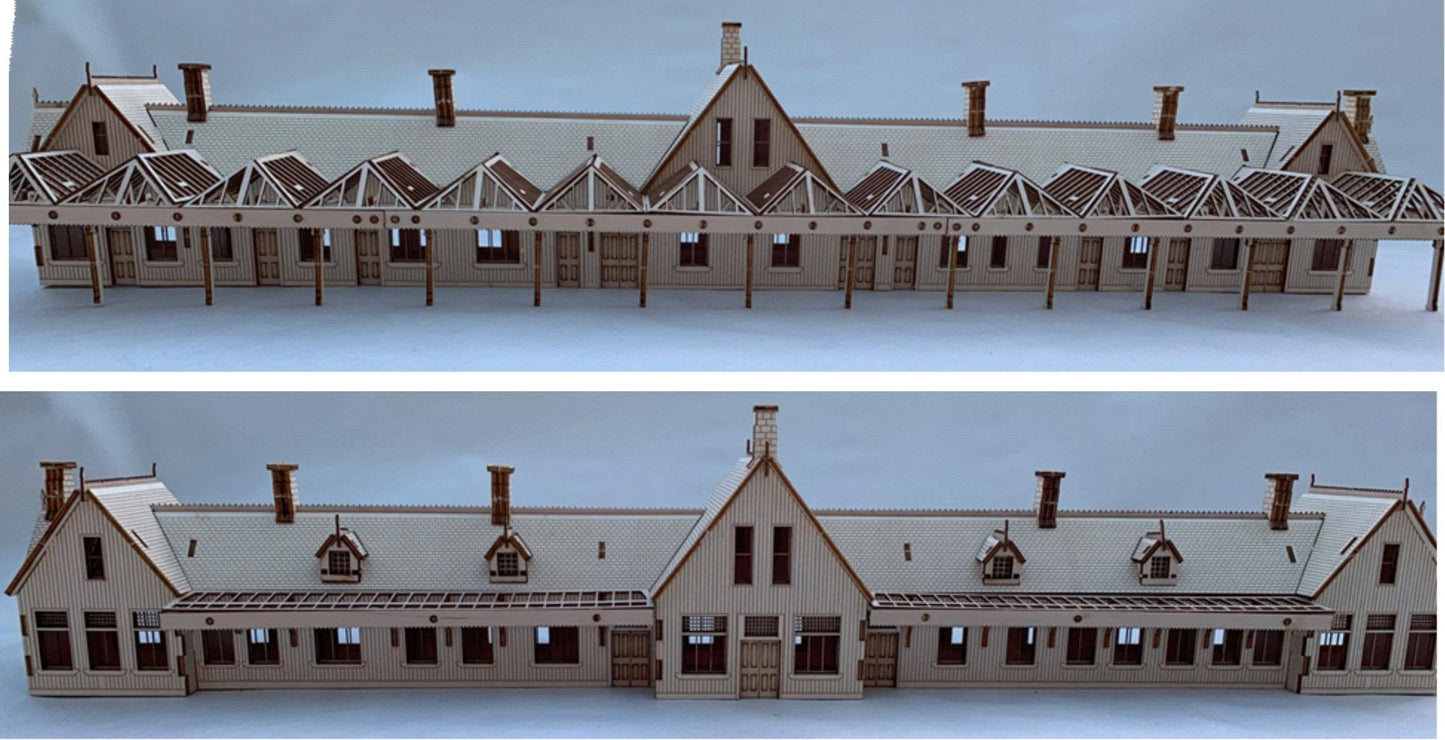

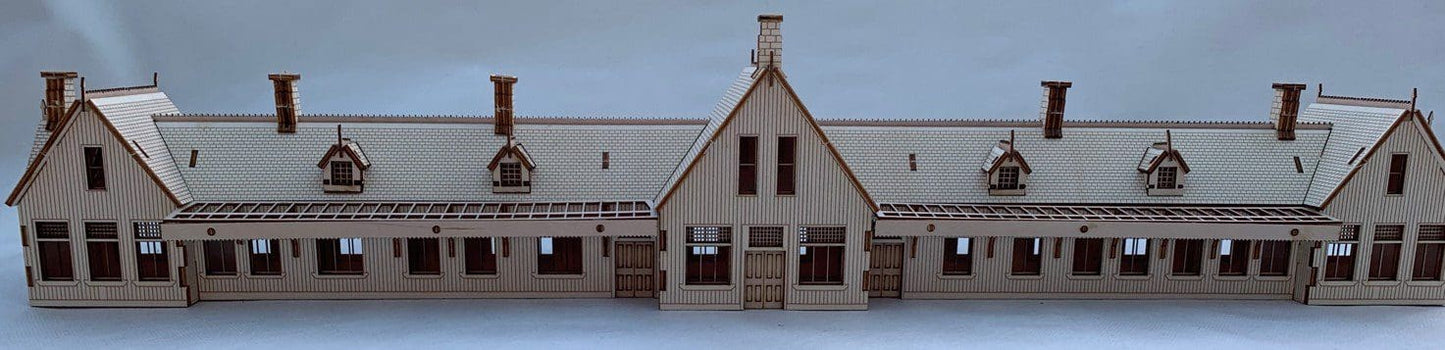

There are options included for different end styles for the station canopy – depending on whether, or not, it is attached to a Single Platform Canopy kit (supplied separately as an option ). Please note that the top main photograph of the station does not have the additional canopy.  This is available as an option below.  The main station is approx 700mm long by 170, the extension original extra canopy is approx 480 long.

The building requires glue. Choose a glue that allows at least a minute before setting to allow adjustments to be made during the build. Always test the build before using glue.

For finishing, we recommend first priming the surface, then painting with any acrylic or model paint of your choice. The material is etched, so any engraved detail such as brickwork or roof tiles will be visible after painting.

Important Information About Railway Scaling

All dimension drawings are supplied in OO gauge.

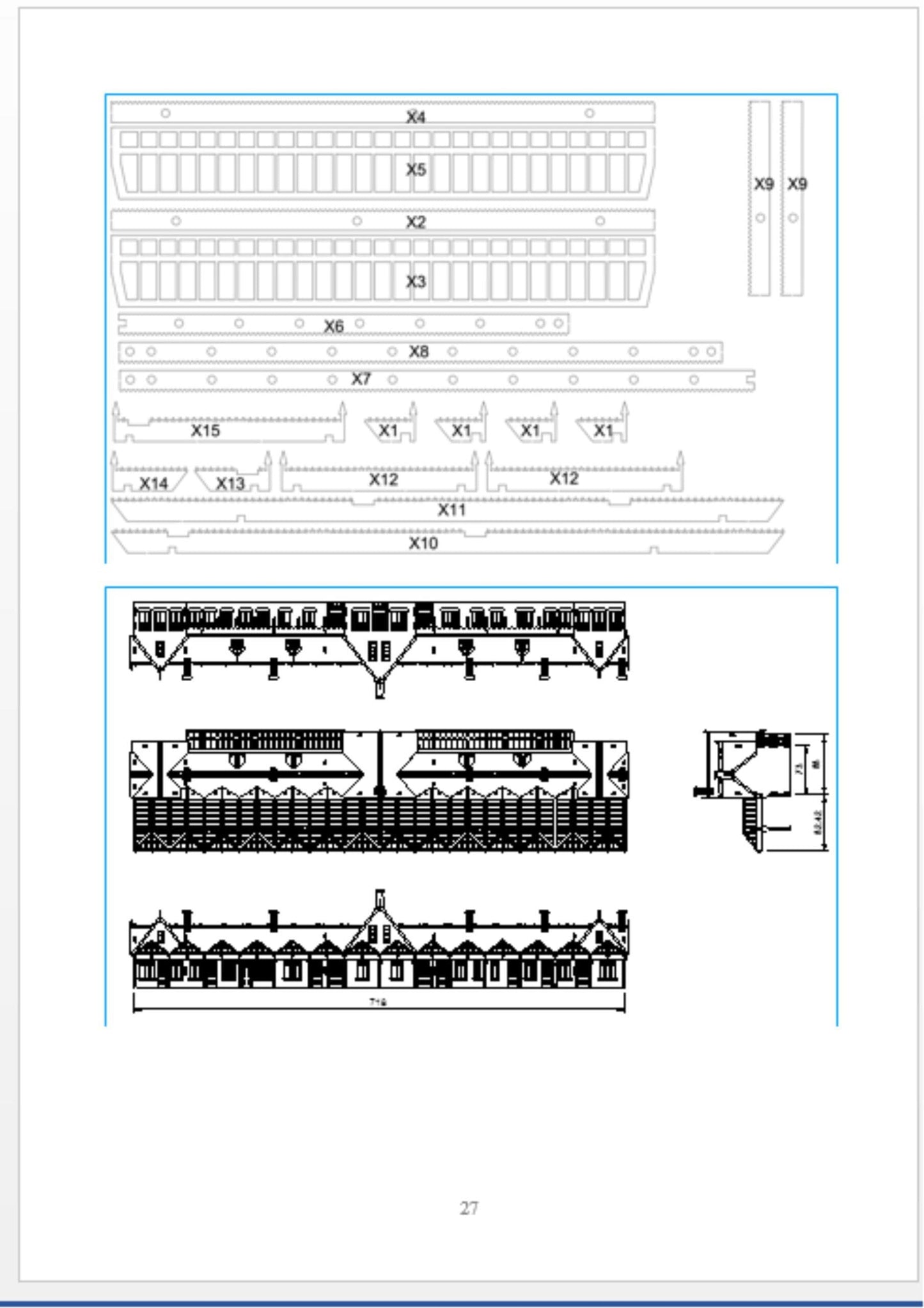

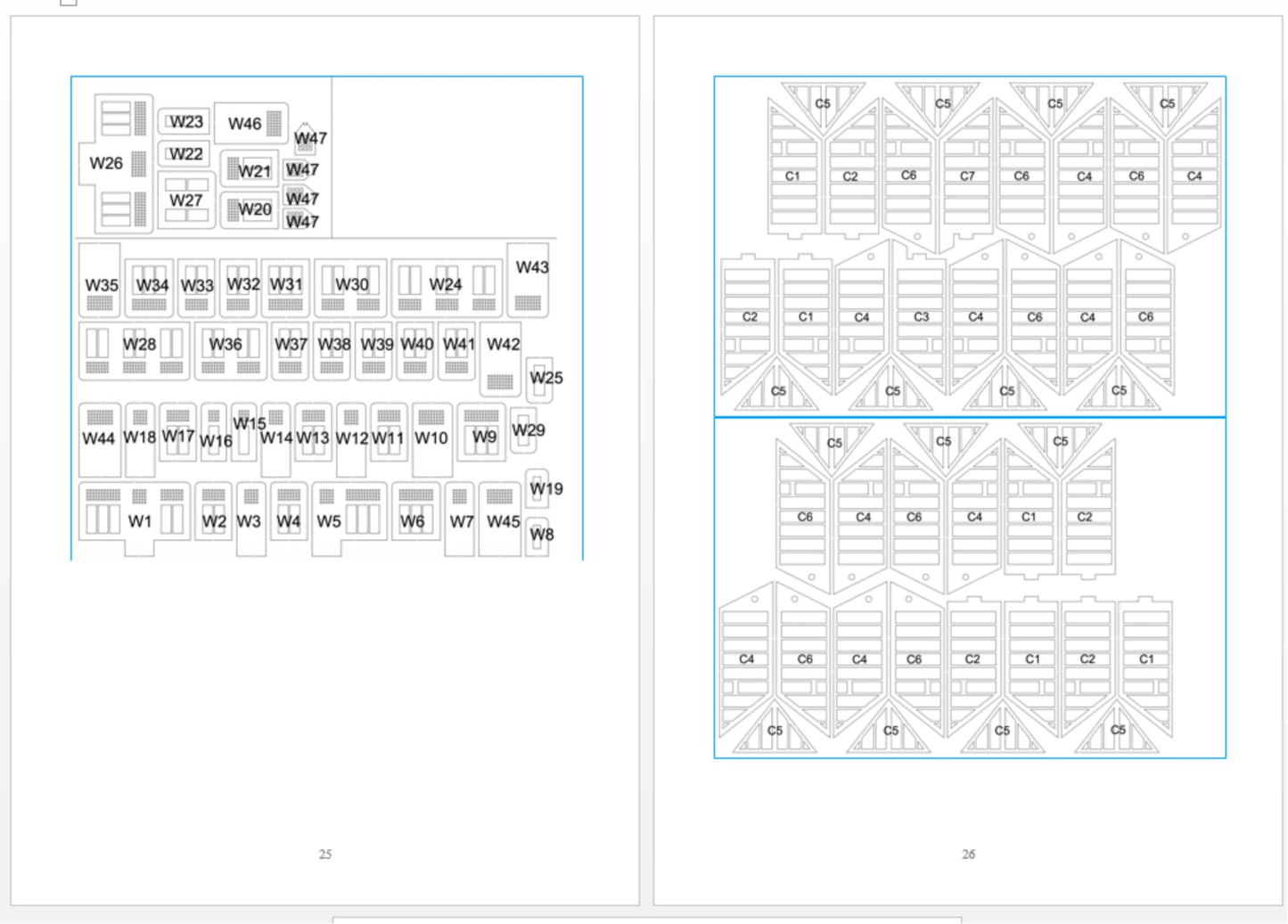

All kits are designed in OO gauge using 3 mm plywood. When scaling the digital files to other gauges, there are a few considerations to take into account. The instructions supplied with your kit will be the OO gauge version, as the build order remains the same across the different scales.

TT:120 Gauge:
All TT:120 gauge kits are scaled to 66% of the size of the original OO gauge model. The mathematically correct conversion from OO to TT:120 is approximately 63.33%, meaning that our TT:120 models are intentionally slightly oversized.

We use the 66% scaling factor because the material thickness required for a true 63.33% reduction is not readily available. By using 66% scaling and 2 mm plywood, we can offer our full range of kits in TT:120 while maintaining the correct fit and assembly of the original designs, without the manual modifications required for our O gauge kits.
This means our TT:120 models are approximately 4.2% larger than mathematically exact 1:120 scale, but this allows us to retain the design detail, strength and ease of assembly of our kits.
If you have any other questions, tips or enquiries, please don't hesitate to contact us via our email address or contact form.

N Gauge:
Scaling to N gauge works well and requires no additional modifications due to the material thickness. Some parts will be very fine, so take care when removing them from the frame. If some window pieces are particularly fine, they can be reinforced by soaking them in glue before assembly.

O Gauge Orders:
When scaling to O gauge, some manual modifications may be required during assembly. This is due to the increased material thickness required when scaling from the 3 mm plywood used for OO gauge. At true O gauge scale, the equivalent material thickness would be approximately 5.25 mm. As this thickness of plywood is not readily available, we use the closest available thickness, 4 mm plywood.

Each design is modified to account for the reduced material thickness, but some manual adjustment may still be required during assembly. We recommend dry-fitting the parts before gluing so that any joints that require light sanding can be identified and adjusted for a flush finish.

This kit is designed by Iain Ross and sold by PopUp Designs with his permission.
